The EcoFlow HeatGuard Solar Film is a high-efficiency, eco-friendly solution designed specifically for Tesla owners. Tailored for Models 3 and Y, these solar panels seamlessly integrate with the car's roof, maximizing solar energy capture without compromising vehicle aesthetics or aerodynamic performance.

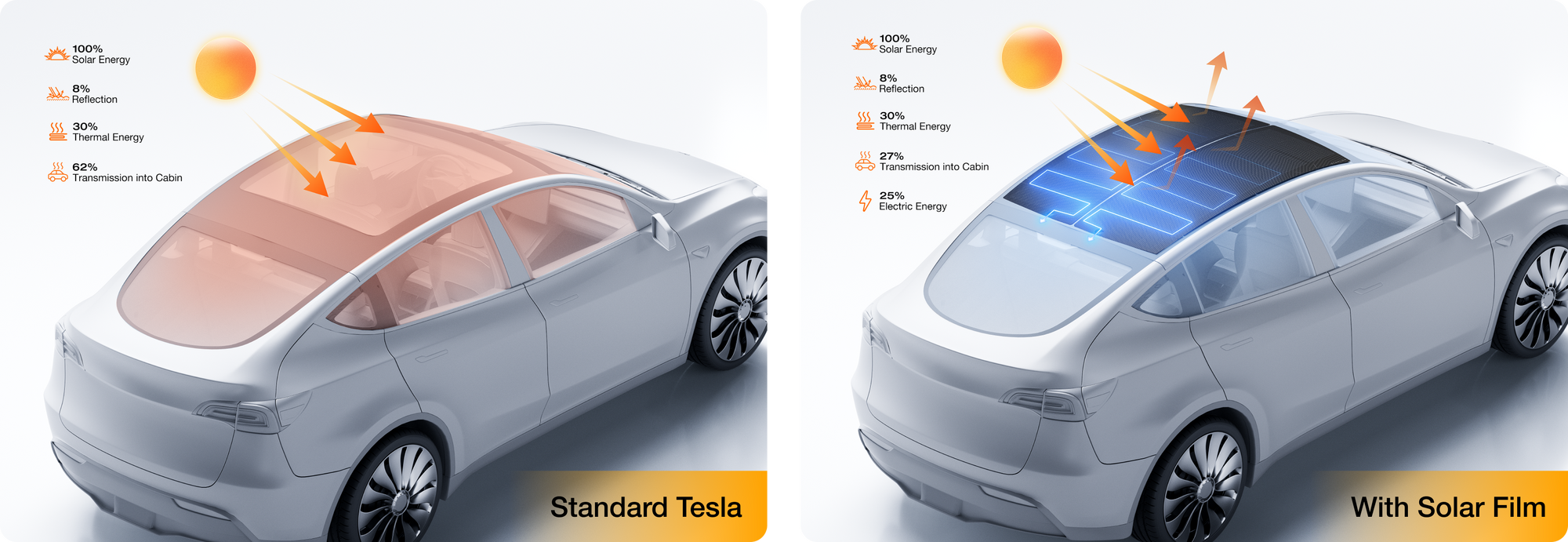

Keep Your Vehicle Cooler.
Create a heat-insulating barrier for your panoramic sunroof, keeping the car cool and with improved air conditioning performance
even in the hottest summer months.
Make Your Vehicle a Power Monster.
Just 3-4 days of sunlight is enough to power your weekend camping trip, eliminating the hassle of traditional charging. Simply park your vehicle during weekdays, and the rooftop heat insulation film will automatically charge your portable power station, ensuring you have power at all times without taking it home for a recharge.
Model 3 (256W, 25V):
In full sunlight, generate up to 1.3kWh of energy per day. Recommended for pairing with 1kWh portable power stations, such as EcoFlow DELTA 2/3.
Model Y (290W, 28V):
In full sunlight, generate up to 1.5kWh of energy per day. Recommended for pairing with 1kWh portable power stations, such as EcoFlow DELTA 2/3.
Model 3 (256W, 25V):
In full sunlight, generate up to 1.3kWh of energy per day. Recommended for pairing with 1kWh portable power stations, such as EcoFlow DELTA 2/3.
Model Y (290W, 28V):
In full sunlight, generate up to 1.5kWh of energy per day. Recommended for pairing with 1kWh portable power stations, such as EcoFlow DELTA 2/3.
Maximize Energy Generation.
With N-Type TOPCon technology, achieve up to 25% conversion efficiency.
No Compromise on the Vehicle’s Overall Performance.
Smart Fit
Designed with an integrated flush-mount solution, the solar panel seamlessly adheres to the curved panoramic roof, preserving Tesla’s signature aerodynamic profile.
Zero Drag
No Compromise on the Vehicle’s Overall PerformanceSmart fit, zero drag.Designed with an integrated flush-mount solution, the solar panel seamlessly adheres to the curved panoramic roof, preserving Tesla’s signature aerodynamic profile. With no additional air resistance, it maintains the vehicle’s low drag coefficient, ensuring uninterrupted driving performance and battery efficiency on long journeys.
Easy Installation, Clean Removal.
Easily connect to third-party solar systems using the included photovoltaic connector (MC4 compatible)⁴. Safely charge your power systems and portable power stations with XT60 connectors, featuring waterproof, anti-leak technology that's touch-safe and reliable.
- High-quality 3M double-sided tape secures the solar film without damaging the paint. Upon removal, no residue is left behind, keeping your Tesla’s finish pristine.
- FlatLink MC4 Cable’s ultra-thin design (1.5 mm thick, 8 mm wide) allows for seamless cable routing through vehicle seams without compromising structural integrity.
- High-quality 3M double-sided tape secures the solar film without damaging the paint. Upon removal, no residue is left behind, keeping your Tesla’s finish pristine.
- FlatLink MC4 Cable’s ultra-thin design (1.5 mm thick, 8 mm wide) allows for seamless cable routing through vehicle seams without compromising structural integrity.

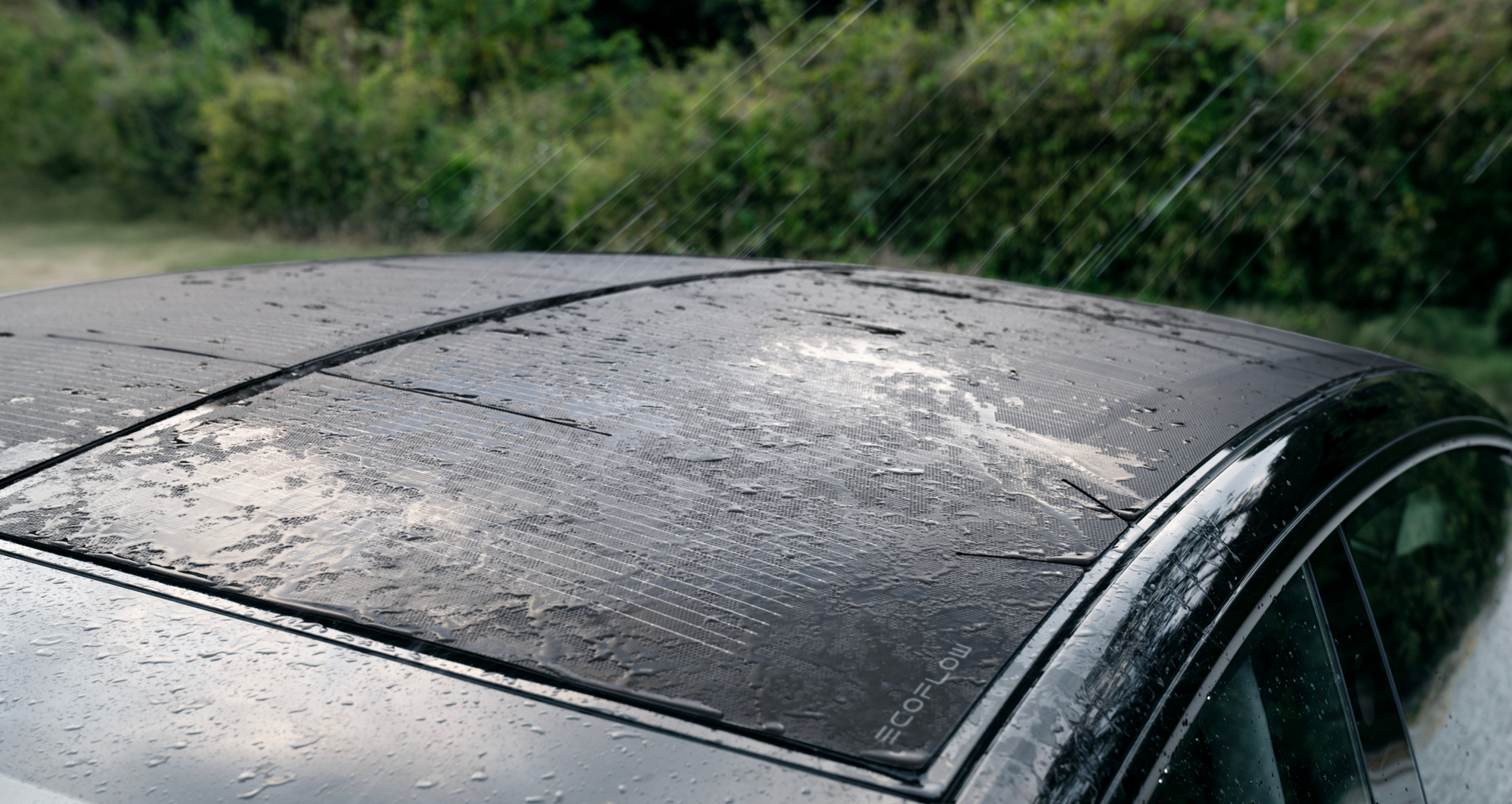

All-Weather Design.
Engineered for durability, the HeatGuard Solar Film withstands light rain, sand, dust, and rugged outdoor conditions without compromising performance. Its splash-proof, crack-resistant design ensures reliability in humid and coastal environments, while the FlatLink MC4 ultra-thin cables maintain Tesla’s original waterproof integrity via the trunk drainage channel.
From the coast to the mountains, drive confidently in any environment.
Smart App Control.
Easily monitor your charging status in real-time* with the EcoFlow app, giving you remote access to
your power station’s performance anytime, anywhere.
* Available exclusively for EcoFlow power station products.
Set Up EcoFlow HeatGuard Solar Film in Minutes.
What's in the Box
Specs
Rated Power
Model 3: 128*2（±5W）
Model Y: 290（±5W）
Short Circuit Current
Model 3: 6.2A
Model Y: 12.4A
Optimal Operating Current
Model 3: 6.0A
Model Y: 11.9A
Open Circuit Voltage
Model 3: 24.9V
Model Y: 28.5V
Optimal Operating Voltage
Model 3: 21.4V
Model Y: 24.4V
Efficiency
≥24.8%
Tape
3M™ VHB™
Maximum System Voltage
600V DC (IEC/UL)
Connector Type
XT60
Recommended Ambient Temperature
-40°C to 85°C (-24°F to 185°F)
Weight
Model 3: Approx. 2.4kg×2 (5.29lbs×2)
Model Y: Approx. 5.0kg (11.02lbs)
Dimensions (L×W×H)
Model 3: 606×1570×18mm(23.9×61.8×0.7in)
Model Y: 620×1640×18 mm(24.4×64.6×0.7 in)
Cell Type
TOPCon monocrystalline silicon
Waterproof & Dustproof Rating
IP68
Lifespan
5 Years
Warranty
2 Years
FAQ
First, make sure to follow the installation instructions correctly. We use 3M VHB tape, a very strong double-sided tape designed for high-strength bonding. Even at high speeds, where the roof faces significant wind pressure, the VHB tape's strong adhesive power ensures that the EcoFlow HeatGuard Solar Film stays firmly attached to the roof. This tape is also designed to handle different temperature changes and the dynamic pressure from vehicle speed, so under normal conditions, the solar panel won't come off due to high speed.
Products that have been installed and have no quality issues cannot be returned or exchanged. Please thoroughly inspect the product and confirm your requirements before installation. If issues arise due to special structural designs or not following the manual, returns and exchanges will not be possible after installation. Additionally, do not use the product in extreme weather conditions like hail or typhoons, as any damage caused will not be covered under the warranty. If you have any questions, please contact customer service, and we will be happy to assist you.
All of our products support IP68 waterproof capability, which can handle various water immersion scenarios, cleaning, dust, and other factors, so you can use them with confidence.
This solar panel is waterproof, dustproof, and UV-resistant, and can withstand high temperatures, low temperatures, rain, and snow. However, damage caused by using this product in harsh or extreme weather conditions (such as hail or typhoons) is not covered under warranty.
EcoFlow HeatGuard Solar Film is lightweight and usually does not significantly increase the vehicle's load.
Yes, but their efficiency will decrease. Winter has shorter daylight hours, and low temperatures may affect battery charging and discharging performance. It is recommended to regularly check whether the solar panels are covered with snow in winter to maintain good power generation capability.
Solar panels require sunlight to generate electricity. They can still produce a small amount of power on cloudy days, but with reduced efficiency. At night or in extreme weather conditions, their power generation capacity will significantly decrease or stop, so using energy storage equipment is recommended.
Yes, but their efficiency will be lower. Winter has shorter daylight hours, and low temperatures can affect the performance of the batteries. It is advisable to regularly check if the solar panels are covered by snow during winter to maintain good power generation capacity.
Typically, they can endure temperatures ranging from -40°C to 85°C, though extended exposure to high heat might reduce their efficiency.
Solar panels are quite light, with each panel weighing around 5.6 kg, so they generally don't add much weight to the vehicle.
